No matter which materials are used to make a "Sunclock" - it is
vital the layouts be aligned exactly North-South, and East-West.
A 'magnetic compass' is certainly NOT recommended for this,
but within each set of Layout Plans we give a method (unique to
your location) - which will find the TRUE North-South direction.
You could even make money - selling the details to other people
who want to know any accurate direction, at their own locations,
(and particularly if you are situated within the continent of INDIA
where there is a very large demand for finding this information).
Basically, it involves using any simple 'temporary support', from
which you suspend a 'plumb-bob' (or a weighted string) - so that
the string will be vertical. To find the North-South direction, you
simply mark the shadow of your string, at a specific time - which
we supply for every day of the year, calculated for your location.

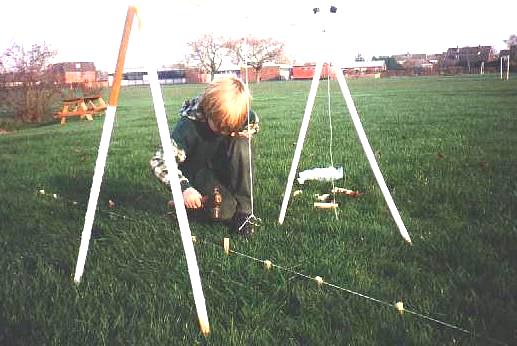

The photograph below illustrates our recommended method, and
this is the only time during the layout when sunshine is needed !

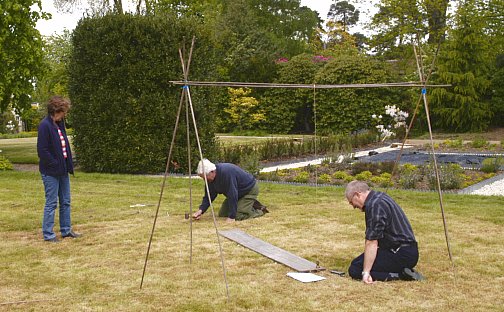

Here is another picture of our accurate technique being used, to
find the exact North-South direction - before installing a 'Human
Sundial', in the gardens at "Reveley Lodge" (Hertfordshire, UK).
Although you will get better accuracy by making your support as
tall as possible (because the string's shadow can be longer), it is
possible to use a lower support - which would make your string
much less likely to be affected by a breeze, or any gusts of wind.

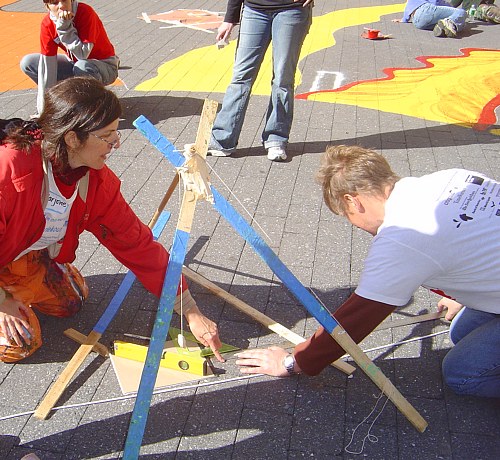

The following photograph shows a simple 'tripod' being used, at
a layout for the "New York Cares Day" in October 2006. You can
find more pictures of this large 'artwork', in our painting section.
As shown in that picture, above, it is also very important to make
sure that your surface (or a temporary board) is absolutely FLAT,
by using a 'spirit-level' to check this before marking the shadow.

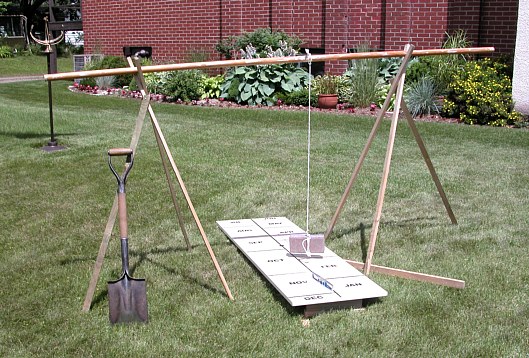

The next photograph shows how you could use some wedges to
level it, and a heavy weight ensures your string remains vertical.
This illustrates our easy yet highly accurate method, being used
outside the "Canadian Clock Museum" - at Deep River, Ontario.

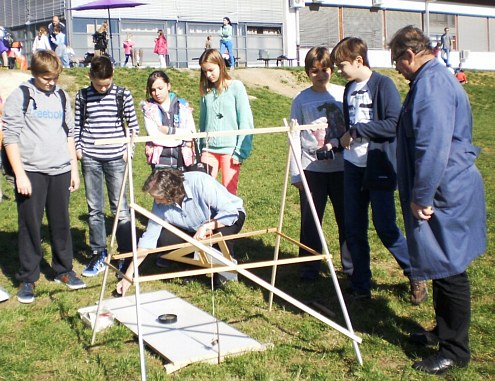

Here is another picture, which also shows 'wedges' for levelling
your board - at the "Petar Preradovic School" (Zagreb, Croatia).
When you have found your North-South line, mark this with a taut
string - and another string at right-angles to it, running East-West.
The main measurements for your "Sunclock" are then taken from
its 'crossing-over' point, of those two strings. Our sundial designs
have simple instructions, plus all the exact dimensions needed, to

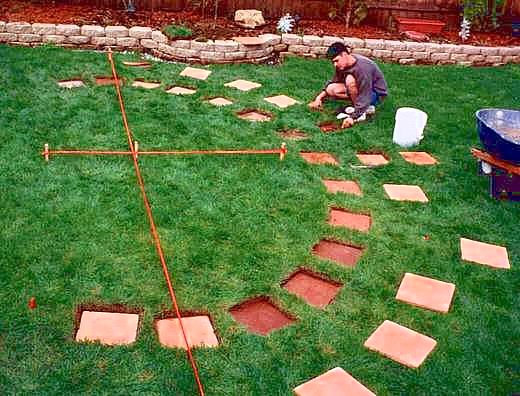

create your own unique 'Human Sundial'. This next picture shows
our easy method being used in a garden at Tualatin, Oregon, USA.
Please note that it should be the person (or organization)
which purchased our Layout Plans, who is also responsible for
finding an accurate North-South direction at their own location.
If (for example) any Builder or Landscaper is involved, with the
installation of "Sunclocks" - then they will be fully within their
rights to delay the setting-out of this feature, until such time as
its correct 'alignment' has been established, by their customer.
In the case of painted school playground markings, finding the
North-South direction must be done as an outdoor educational
project - BEFORE a school uses the services of any external
Contractor, to set-out their interactive 'Human Sundial' feature.
Otherwise, there will be delays and a significant cost increase.
You are able to share in the world-wide success of this unique
"Sunclock" business, with a 'FREE Franchise' which we offer !
There is no cost to be involved (in several possible ways), and
ALL of the profit which you create would be entirely your own.
The simplest way to make money, is re-selling our customized
Sundial Plans - plus which can just be E-mailed to customers,
(at whatever price you decide to charge them for these Plans).
You could make and/or install layouts, for even greater profits.
